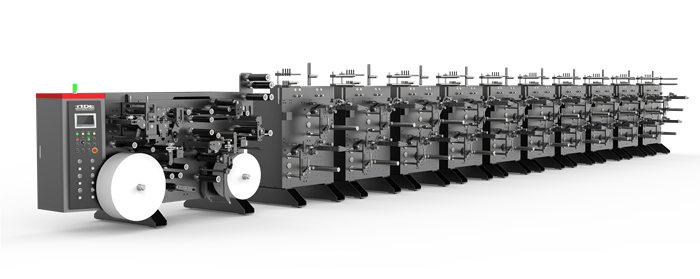

FS150 Digital Control Hi-speed Carry Handle Tape Spooling Machine

CHARACTERISTICS

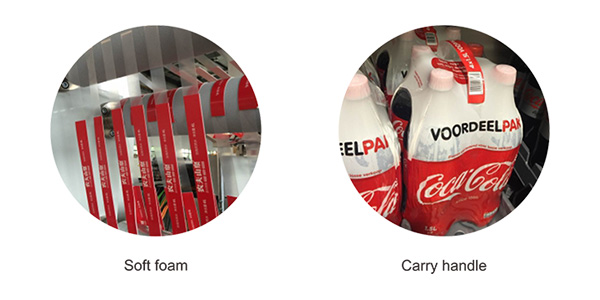

· Slitting for carry handle tapes and special material
· Servo driving system
· Circle knife sliting
· Center rewinding mode
· Spooling rewinding mode
· Self diagnosis
· Remote diagnosis and services
· Separated tension control system

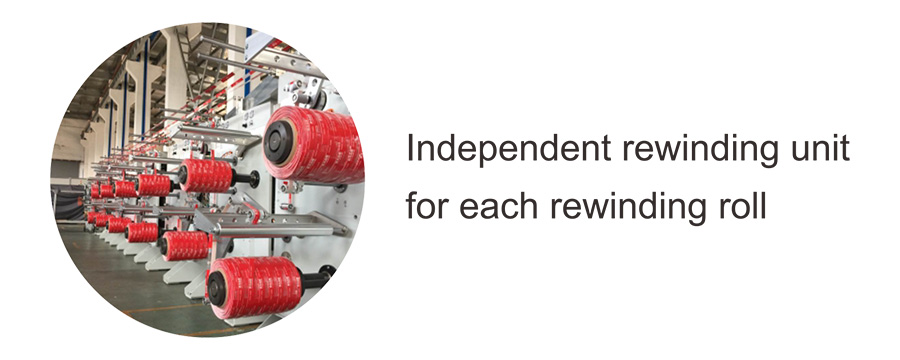

· Independent rewinding unit for each rewinding roll
· Cantilever air shaft for rewinding
· Rell rewinding mode
· Fully online transection lamination slitting
· Maintenance information on touch screen

TECHNICAL DATA
· Width of working face: 300mm(max)
· Diameter of unwinding: φ500mm
· Thickness of material: 200-2000μm(max)
· Diameter of rewinding: 300mm(max)
· Working speed: 150m/min(max)
· Width of slitting: 1mm(min)
