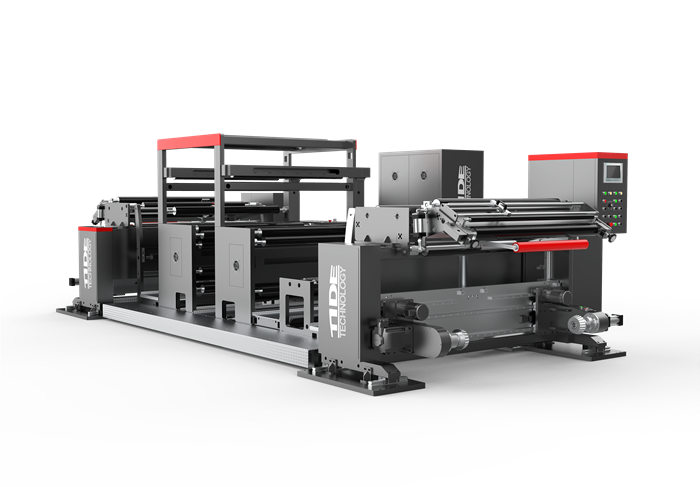

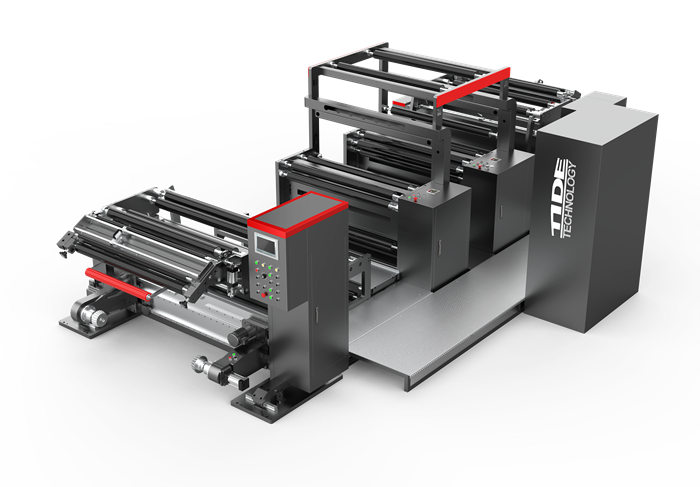

MR300 Plus Digital Control High Speed Rewinding Machine

CHARACTERISTICS
· Modularized rewinding machine
· Unwinding width adjusting by hydraulic automatically
· Servo driving system
· Independent rewinding unit for each rewinding roll
· Rewinding width adjusting by hydraulic automatically

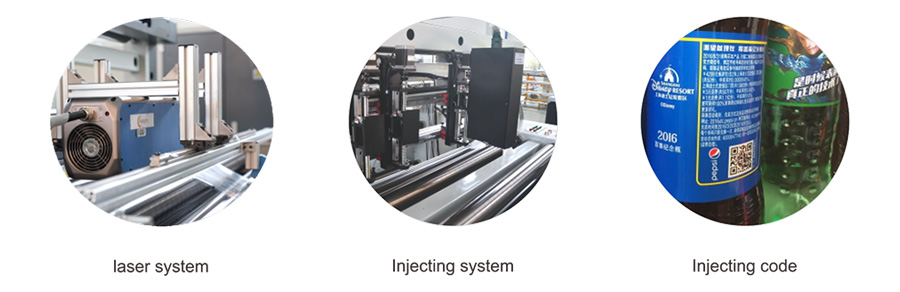

· Any combination of injecting code system, laser system, inspecting system
· Maintenance information on touch screen
· Unloading rolls loading sami-automatically
· Splicing table with nip bars to fix the material by the cylinder
· Spearated tension control system
· Locating the razor position automatically
· Shaftless with air chuncks
· Self diagnosis
· Remote diagnosis and services

TECHNICAL DATA
· Diameter of unwinding: φ1000mm
· Thickness material: 12-120μm
· Width of unwinding: 500mm-1300mm
· Diameter of rewinding: φ1000mm
· Width of working face: 500mm-1300mm
· Working Speed: 300m/min
OPTION

* Iniecting both two side of material at the same time
* Corona system
* Inspecting the injecting code automatically
